A small home network behind CGNAT

Two equal paths to routable IPv6 — a self-operated VPS routing a /48, or the free Route64 broker routing a /56 — over shared VLAN, DNS, and per-VLAN address scaffolding. Pick a path; the rest of the build is identical either way.

Published 15 May 2026

Overview

A journal of building a small, opinionated home network on a single MikroTik RB5009 behind residential fiber that uses carrier-grade NAT — a dynamic IPv4 address with no inbound reachability and no usable IPv6. The goals are pedestrian: keep IoT and guests off the trusted LAN, and have real IPv6 so the network stays useful as the rest of the internet finishes the v6 migration.

The build is two layers, in install order. Layer 1 splits the LAN into VLANs — its own paste-ready companion post, Trusted, IoT, and Guest VLANs on RouterOS; the rest of the series assumes it has been applied. Layer 2 recovers real, routable IPv6 over the CGNAT'd line. There are two equal ways to do that, and choosing between them is the main decision in this build:

• Routed IPv6 over CGNAT via a VPS — a $3/month VPS that routes a /48 to its instance, a WireGuard tunnel from the RB5009, and eBGP between them. You operate the endpoint; the post includes Ubuntu/BIRD, VyOS, and CHR relay variants.
• Routed IPv6 over CGNAT via Route64 — the free Route64 broker routes a /56 over WireGuard. Nothing to operate; a single broker-managed uplink.

Both yield real, routable IPv6 carried over the same WireGuard transport. The path-choice matrix in §3 lays out the trade-offs side by side; everything else in this series — VLANs, DNS, per-VLAN address plan, the §5 ULA-only update — is identical either way. Nothing depends on a specific fiber brand: only that outbound UDP works.

This is the index post. The numbered sections that follow are the path- agnostic scaffolding both routes share. Companion posts cover what stands alone: encrypted DNS with a stable resolver address (here, needs no IPv6 uplink), the UniFi controller running on this same router (here), and fast IPv6 failover with BGP + BFD (here, VPS path only). References point at the original gists.

Design decisions

Two choices matter enough that a reader substituting parts will want a sentence of justification.

WireGuard carries the IPv6 transport because residential CGNAT only guarantees outbound UDP, and WireGuard needs nothing more than that. Both endpoints (RouterOS v7 and the relay — Linux for the VPS path, the Route64 PoP for the broker path) speak it with a single config primitive on each side; there is no daemon to babysit, no negotiation, and no MTU two-stepping with an underlying IPsec SA. IPsec/IKEv2, GRE+IPsec, or OpenVPN would all work; each adds operational surface this build does not need to pay for. The same is true of Hurricane Electric's 6in4 — its IP protocol 41 has no UDP/TCP ports for a carrier's NAT44 to track and is dropped behind CGNAT (verified on the live line).

VPS and Route64 are equal paths, not primary and fallback. The reader picks one based on the trade-offs in §3 and follows that post end-to-end; everything else in the series is identical either way. Treating them as peers is the structural reason this index exists in the first place — the old single-post shape buried Route64 in a footnote and overstated the VPS path's defaults.

1. Topology

                       Internet (IPv4 + IPv6)
                              │
                ┌─────────────┴─────────────┐
                │   IPv6 relay (one of):    │
                │   • VPS — routes /48      │
                │   • Route64 PoP — /56     │
                └─────────────┬─────────────┘
                              │ WireGuard / outbound UDP
                              │ (only IPv6 transits the tunnel)
                ┌─────────────┴─────────────┐
                │   Converge fiber + CGNAT  │
                │   (IPv4 outbound only)    │
                └─────────────┬─────────────┘
                              │
                ┌─────────────┴─────────────┐
                │  MikroTik RB5009 — edge   │
                │  • DHCPv4 + RA + RDNSS    │
                │  • DoH resolver           │
                │  • WireGuard client       │
                │  • path-specific routing  │
                └──┬──────────┬──────────┬──┘
                   │          │          │
        ether2/3 (trunks)  ether4/5 (LAN-only access)
                   │
        ┌──────────┴──────────┐
        │  UniFi 6 APs ×2     │
        │  untagged = mgmt    │
        │  tag 10 = IoT SSID  │
        │  tag 20 = Guest SSID│
        │  tag 30 = trusted   │
        └──────────┬──────────┘
                   │
       LAN 1   IoT 10   Guest 20   Trusted 30 (§5)
   192.168.88/24  .89/24  .90/24      .91/24

One box does everything the LAN side needs. The RB5009 terminates the WAN, runs DHCPv4 and IPv6 RA, runs DoH outbound, hosts the WireGuard client toward whichever relay you chose, and exchanges routing intent with it (eBGP for the VPS path, static default for Route64). Two UniFi 6 APs hang off bridge ports configured as hybrid trunks: untagged frames carry AP management on the main LAN, tagged frames carry IoT, Guest, and the §5 trusted SSID traffic.

One always-on device is enough — the UniFi controller runs on this same RB5009 as RouterOS containers (no second box, no second attack surface): companion post.

Address plan (abstract)

Each VLAN is a separate L3 boundary at the router. The IoT and Guest VLANs reuse their VLAN numbers as the IPv6 slice ID (:10::/64, :20::/64) so the mapping stays obvious in tcpdump. The <prefix> placeholder is concrete in each path post:

• VPS path uses <LAN_PREFIX> — a /48 dropping trailing zeros, e.g. 2001:db8, so <LAN_PREFIX>:1::/64 expands to 2001:db8:0:1::/64.
• Route64 path uses <R64_56> — the part of the /56 before its subnet byte, e.g. 2001:db8:abcd:c0, so <R64_56>01::1/64 expands to 2001:db8:abcd:c001::1/64.

2. Shared conventions

Every snippet in this series uses angle-bracketed placeholders. Substitute them before pasting; everything else is literal RouterOS or bash. One placeholder is series-wide: <ULA_PREFIX>, your locally-generated ULA — python3 -c 'import secrets; print(f"fd{secrets.token_hex(5)}")'. Each path post lists its own additions (relay address, public keys, ASN, etc.).

Documentation prefixes from RFC 3849 (2001:db8::/32) and RFC 4193 (fd00::/8) work as stand-ins while testing. Snippets assume the defconf bridge name bridge and ports ether2–ether5; rename the interfaces where they appear.

3. Pick a path: VPS-routed /48 or Route64 /56

Both paths recover routable IPv6 over the same WireGuard transport. They are peers, not primary and fallback. Pick on the trade-offs that matter to you:

Everything else in this series — VLANs, DNS, per-VLAN address plan, the §5 ULA-only update below — is identical either way.

Want both running at the same time? The series finale, Multi-homing IPv6 over CGNAT on RouterOS, is a clean-slate WAN build that brings up the VPS and Route64 paths simultaneously under one announceable /48, with BGP best-path picking the active default and BFD on the VPS session. It is standalone — you do not need to have read or built Parts 4 or 5 first — but it requires a 32-bit ASN and an announceable /48 as hard prerequisites.

4. LAN segmentation comes first

Layer 1 — main LAN on VLAN 1 untagged, IoT and Guest on tagged VLANs 10 and 20 sharing the AP uplinks, each its own L3 boundary with per-VLAN DHCP and east-west isolation in the forward chain — is paste-ready in full in its own post: Trusted, IoT, and Guest VLANs on RouterOS (bridge VLAN table, L3 gateways, DHCP scopes, input/forward firewall, and the hybrid-trunk rationale).

The chosen path post assumes this has been applied — specifically the vlan-iot and vlan-guest interfaces and the bridge VLAN table it creates. The IPv6 layer simply adds a global and ULA prefix to those same interfaces.

5. Keeping streaming off the routable-IPv6 path

Added May 16, 2026. Running the build surfaced a failure mode the original design did not anticipate. The mechanism is path-agnostic; the motivation applies to both paths, with one extra cost on the VPS path.

Every routable-IPv6 packet from the house egresses a datacenter ASN — the VPS's, or Route64's PoP. That breaks two things:

1. Streaming apps flag the datacenter range as a VPN. Happy Eyeballs (RFC 8305) reaches for the flagged IPv6 path before the perfectly good native IPv4, so video stalls or refuses. This applies to both paths.
2. VPS path only: the high-bitrate video burns the VPS's metered 1 TB cap (see the VPS post's cost appendix) for no reason. Route64 has no equivalent cap; it has a ToS.

The fix is the same either way: not every trusted device needs global IPv6. Give a VLAN a ULA but no GUA — with no global address there is no global v6 route at all, so the client uses native ISP IPv4 for anything internet-facing while the ULA still carries router DNS (RA RDNSS) and on-link v6. This is failsafe by construction — the absence of a route, not a firewall rule something could slip past — and the per-VLAN anti-spoof list each path post defines enforces it. Dropping the GUA's forward path in the firewall instead would not work: the client would still autoconfigure a GUA, still prefer it per Happy Eyeballs, and stall for the fallback timeout on every new connection. Removing the GUA means there is nothing to fall back from.

VLAN 30 is a normal trusted VLAN — LAN interface-list membership is the only thing "trusted" means here — with exactly one difference from VLAN 1: no GUA is assigned, so there is no global v6 route to leave on.

1/interface/vlan add interface=bridge name=vlan30 vlan-id=30 2/interface/bridge/vlan add bridge=bridge vlan-ids=30 \ 3 tagged=bridge,ether2,ether3 comment="VLAN30 trusted, tagged to APs" 4 5/ip/address add address=192.168.91.1/24 interface=vlan30 6/ip/pool add name=vlan30-pool ranges=192.168.91.100-192.168.91.200 7/ip/dhcp-server add name=vlan30-dhcp interface=vlan30 address-pool=vlan30-pool lease-time=1d 8/ip/dhcp-server/network add address=192.168.91.0/24 gateway=192.168.91.1 dns-none=yes 9 10/interface/list/member add list=LAN interface=vlan30 11 12# ULA only — deliberately no GUA from the routed prefix. 13/ipv6/address add interface=vlan30 address=<ULA_PREFIX>:30::1/64 advertise=yes comment="VLAN30 ULA" 14/ipv6/nd add interface=vlan30 advertise-dns=self \ 15 managed-address-configuration=no other-configuration=no 16 17/ipv6/firewall/address-list 18add list=vlan30-legit address=<ULA_PREFIX>:30::/64 19add list=vlan30-legit address=fe80::/10 20/ipv6/firewall/filter add chain=forward action=drop in-interface=vlan30 \ 21 src-address-list=!vlan30-legit comment="VLAN30: anti-spoof" 22 23# Mirror the IoT/Guest !-> LAN isolation onto vlan30. Without these, moving 24# the trusted SSID onto vlan30 would silently make it reachable from the 25# untrusted VLANs — vlan30 joins the LAN interface-list above, so the 26# defconf "drop !LAN" does not cover this direction either. 27/ip/firewall/filter 28add chain=forward action=drop in-interface=vlan-iot out-interface=vlan30 connection-state=new \ 29 comment="IOT !-> VLAN30" place-before=[find where comment="IOT !-> LAN"] 30add chain=forward action=drop in-interface=vlan-guest out-interface=vlan30 connection-state=new \ 31 comment="GUEST !-> VLAN30" place-before=[find where comment="GUEST !-> LAN"] 32 33/ipv6/firewall/filter 34add chain=forward action=drop in-interface=vlan-iot out-interface=vlan30 connection-state=new comment="IOT !-> VLAN30 (v6)" 35add chain=forward action=drop in-interface=vlan-guest out-interface=vlan30 connection-state=new comment="GUEST !-> VLAN30 (v6)"

Wired hosts that want the trusted VLAN need a tagged access port; the bridge VLAN table above keeps vlan30 tagged on bridge,ether2,ether3 only, so ether4/5 stay untagged-VLAN-1 by design. A wired trusted machine either lives on VLAN 1 (the few-devices-that-want-global-v6 case this section keeps it for) or wants its access port reworked to untagged=vlan30 — out of scope here.

The DNS lines (dns-none=yes, advertise-dns=self) are the standard RDNSS posture from the DNS companion post. VLAN 30 is on-link only: nothing here advertises an MTU clamp because the v6 never reaches a tunnel — PMTUD handles any oversized packet on the WireGuard interfaces transparently for the tunnel-bound VLANs.

The VLAN 30 anti-spoof block above follows the same pattern as the Per-VLAN IPv6 post — one *-legit list per VLAN, listing the legitimate prefixes (here just the ULA and link-local since there is no GUA), then a forward-chain drop on anything outside the list.

Move the main client SSID onto VLAN 30 in the controller, leaving VLAN 1 for the few devices that genuinely want global v6. Guest (VLAN 20) gets the same treatment — it never needed routable reachability — so drop its GUA and the matching guest-legit entry from the Per-VLAN IPv6 post's anti-spoof list:

1/ipv6/address remove [find comment="GUEST GUA"] 2/ipv6/firewall/address-list remove [find list=guest-legit address=<GUA_GUEST>::/64]

IoT (VLAN 10) keeps its GUA: its handful of outbound v6 flows are negligible against any cap, and some devices behave better with working v6 than with a half-deprecated one.

A device associated at the moment its SSID's VLAN changes keeps the old VLAN's SLAAC addresses until their lifetimes expire — RouterOS defaults to a one-week preferred / four-week valid lifetime. For up to a week those devices still prefer the old GUA, the new VLAN's anti-spoof rule drops it (its drop counter is exactly that retried traffic being contained — nothing leaks), and they fall back to IPv4 with a brief Happy-Eyeballs delay. There is no router-side fix — a prefix can only be retracted on the link the client has already left. The one effective cleanup is a single Wi-Fi reconnect or reboot of each moved device: on re-association it rebuilds its address set and the stale prefix is never recreated.

Net effect: streaming and other high-bitrate traffic from the main SSID rides native ISP IPv4 — no datacenter ASN, no VPN flag, no metered GB — while DNS, on-link IPv6, and the trusted-LAN posture are unchanged. The routable-IPv6 path goes back to doing what it is actually for: giving the devices that want it real, routable IPv6.

6. Encrypted DNS with stable resolver addresses

Upstream DNS leaves through Cloudflare DoH; downstream, the router is the resolver and advertises itself via RA RDNSS at a ULA, so SLAAC prefix churn never moves the memorized DNS server. This piece is independent of the IPv6 uplink (the ULA is local; DoH egresses over IPv4), so it is paste-ready in full in its own post: Encrypted DNS with a stable resolver address on RouterOS (DoH bootstrap pins, LAN ULA and router.lan record, advertise-dns=self, the uniform dns-none=yes posture, verification).

One coupling is unique to this combined build: the DoH bootstrap must be pinned A-only, because a client's first query must not ride the IPv6 path — that path only comes up after the WireGuard tunnel handshakes (and, on the VPS path with the failover companion, after BFD converges).

7. Verification (path-agnostic)

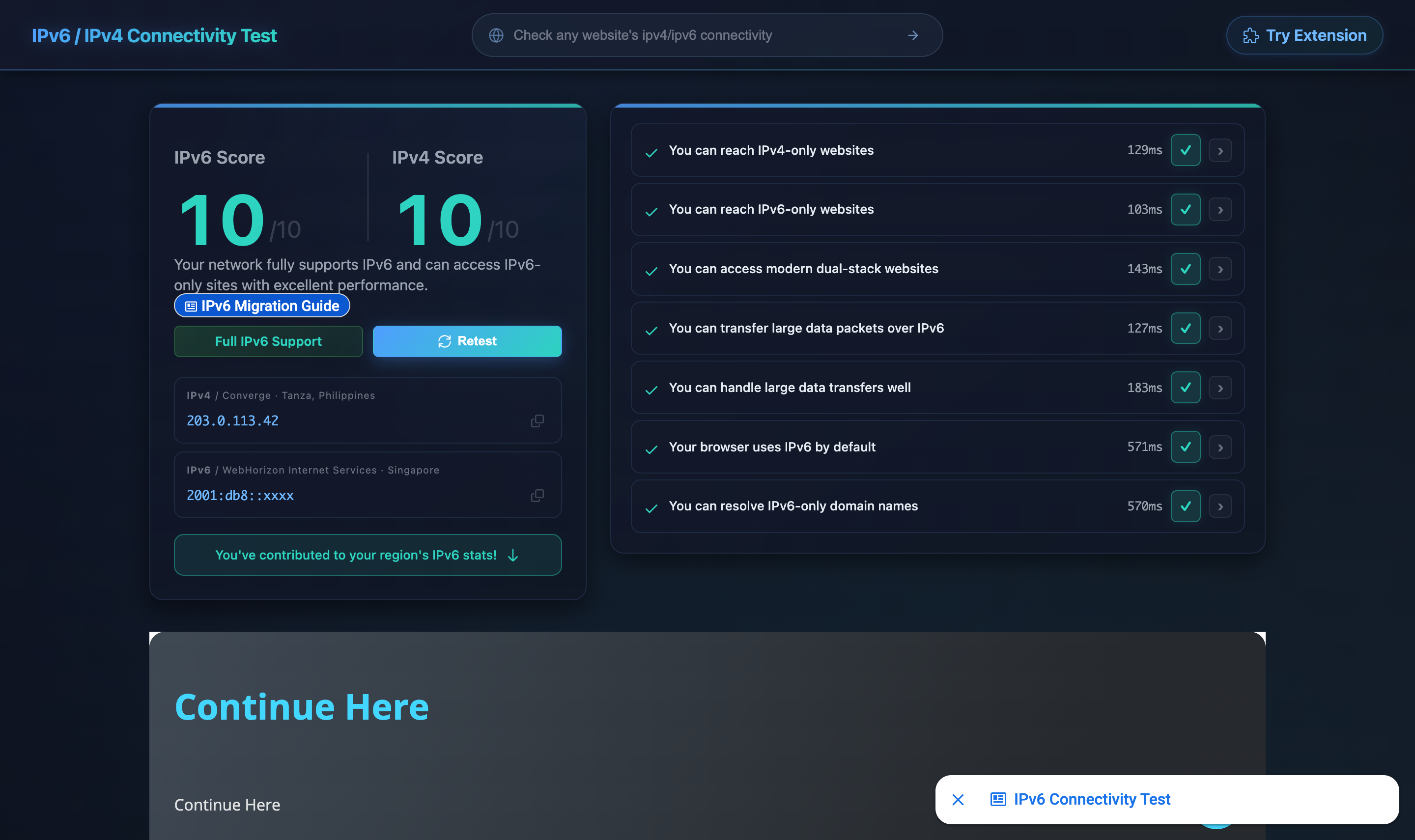

Each path post carries its own end-to-end checks (BGP session state and relay-side route tables for the VPS path; tunnel handshake and netwatch state for Route64). The path-agnostic check takes one browser tab from a LAN client: load test-ipv6.run and confirm a 10/10 on both stacks.

A clean score on both rows means the address plan, the WireGuard tunnel, and the per-VLAN GUA all work together. Anything less than that, drop into the path post's verification block to see which layer is failing.

FAQ

CGNAT is when your ISP shares one public IPv4 address across many customers by NATing them behind a carrier-operated NAT. Your WAN interface gets an address in RFC 6598 space (100.64.0.0/10) — not a public IPv4 — and the ISP handles port translation upstream. It's common on residential fiber where public IPv4 is scarce. Inbound IPv4 services (port forwards, HE 6in4) stop working; outbound NAT still does.

Compare two addresses. Read the WAN IPv4 on your router (RouterOS: /ip/address/print where interface=<wan>). Then check what ipinfo.io or curl ifconfig.me reports. If the router's WAN address starts with 100.64–100.127 (RFC 6598) or otherwise differs from the public address, you're behind CGNAT.

No. HE's 6in4 uses IP protocol 41 (raw IPv6 inside IPv4), and carrier-grade NAT only translates TCP, UDP, and ICMP — protocol 41 packets get dropped. Use a WireGuard-based path instead: either the Route64 broker for a free routed /56, or a self-operated VPS routing a /48.

No. The Route64 broker path hands out a routed /56 over WireGuard with no VPS to operate. The VPS-routed /48 path is the alternative if you'd rather own the relay end and get a larger prefix. Both produce the same per-VLAN result; the rest of the build is identical either way.

Yes — the series finale, Multi-homing IPv6 over CGNAT on RouterOS, brings up the VPS and Route64 paths simultaneously under one announceable /48, with BGP best-path selecting the active default and BFD on the VPS session for sub-second failover. It is a clean-slate WAN build (not a sequel to Parts 4 or 5) and requires a 32-bit ASN plus an announceable /48 as hard prerequisites — Parts 4 and 5 stay as the friction-low standalone reads for the single-uplink case.

A /48 gives you 65,536 /64 subnets; a /56 gives you 256. Both are ample for one /64 per home VLAN. /48 is the IETF "site allocation" size from RFC 6177; /56 is what consumer ISPs and most brokers (including Route64) hand out by default.

Glossary

References

• Trusted, IoT, and Guest VLANs on RouterOS — companion post
• Routed IPv6 over CGNAT via a VPS — path post
• Routed IPv6 over CGNAT via Route64 — path post
• Per-VLAN IPv6 on RouterOS — the LAN-side step after either path
• Encrypted DNS with a stable resolver address — companion post
• Fast IPv6 failover (BGP + BFD) — companion post, VPS path only
• Multi-homing IPv6 over CGNAT on RouterOS — series finale, both paths active under one /48
• Running the UniFi controller on the RB5009 — companion post
• RFC 3849 — IPv6 address prefix reserved for documentation (2001:db8::/32)
• RFC 4193 — Unique Local IPv6 unicast addresses (fd00::/8)
• RFC 8305 — Happy Eyeballs v2 (why a flagged IPv6 path is tried before native IPv4, §5)
